Our PSS 2.2-400 at a glance

The basic machine consists of:

  • Stainless steel machine housing with inlet chamber and side cleanout
  • Hydraulic ball head with swivelling device
  • Inlet for separating liquid
  • Outlet connections for the filtered liquid
  • Armored press screw made of stainless steel with a precise fit on the sieve
  • Drive motor for separation up to 32 % TS, 2.2 kW, 1450 rpm.

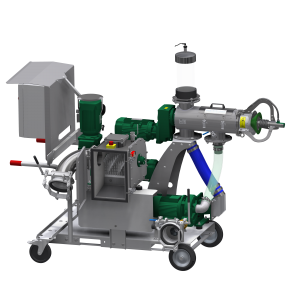

The mobile unit ComPress consists of:

  • Press screw separator PSS 2.2-400 with 2.2 kW drive motor
  • Rotary lobe pump with 2.2 kW drive motor
  • Pressure measuring unit
  • Electronic control system
  • Optional: Chassis consisting of axle with wheels and 2 swivel castors

Agriculture

  • Cattle and pig slurry: For easier transportation or as bedding material

Biogas plants

  • Separating solid and liquid matter before and after the fermentation process

Industry

  • Food industry: Separation of waste vegetable or potato peelings
  • Slaughterhouses: Separation of rumen contents
  • Distilleries: Separation of the mash



  • Compact design
  • Specially designed for small separation quantities
  • Very good price/performance ratio
  • Thanks to the control system technology, the separator can be used at the optimum operating point
  • The system can grow with the requirements --> the separator can be extended effortlessly



  • Separator PSS 2.2-400 M1508 with hydraulic cylinder head
  • Motor 2,2 kW
  • Manual hydraulic pump with diaphragm accumulator and manometer for cylinder head
  • Inlet
  • Hydraulic cylinder head pivoted for maintenance
  • Stainless steel sieve basket, optional reinforced
  • Armored auger
  • Discontinued 6" standard flange
