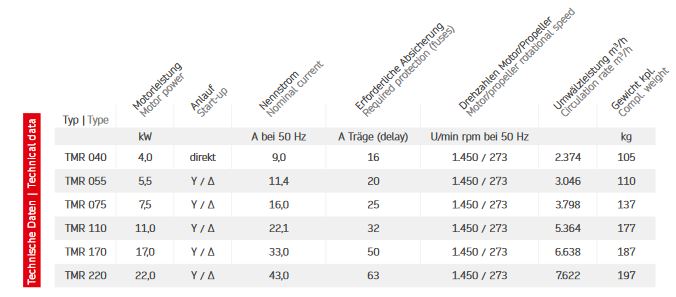

Our Submersible Motor Agitator TMR 3D at a glance



  • Three phase motor 400 V, 50 Hz, 1,450 rpm, electric motor with oil filling
  • Insulating category F = 155 °C, protection category IP68
  • Thermo-control for each phase as overheating protection
  • Motor housing in stainless steel
  • Gearbox housing and motor cover made of cast iron coated with 2-component plastic paint
  • Planetary gear
  • Propeller rotational speed 273 rpm
  • As standard highly wear-resistant slide ring sealing
  • Electric cable: 10 m with cast screw connection and 10 stainless steel cable clamps with rubber inserts and stainless steel shackles
  • Special electric cable with source-bodies as protection against humidity along the length of the cable, with interior FEP sheath and exterior polyurethane sheath
  • Stainless steel sliding guide with depth stop for guide rail 100 x 100 mm
  • Submersion depth max. 10 m (other depths on request)



3 blade optimised agitator for:

  • thick manure and bio-mass in biogas plants.



  • Individually adjustable submersion depth
  • Liquid jet and direction of fl ow can be adjusted as required
  • High-powered agitation
  • Eco-friendly and economical operation
  • Optimum media homogenisation
  • Excellent value for money
  • High quality from our in-house manufacturing
  • A wide range of accessories
