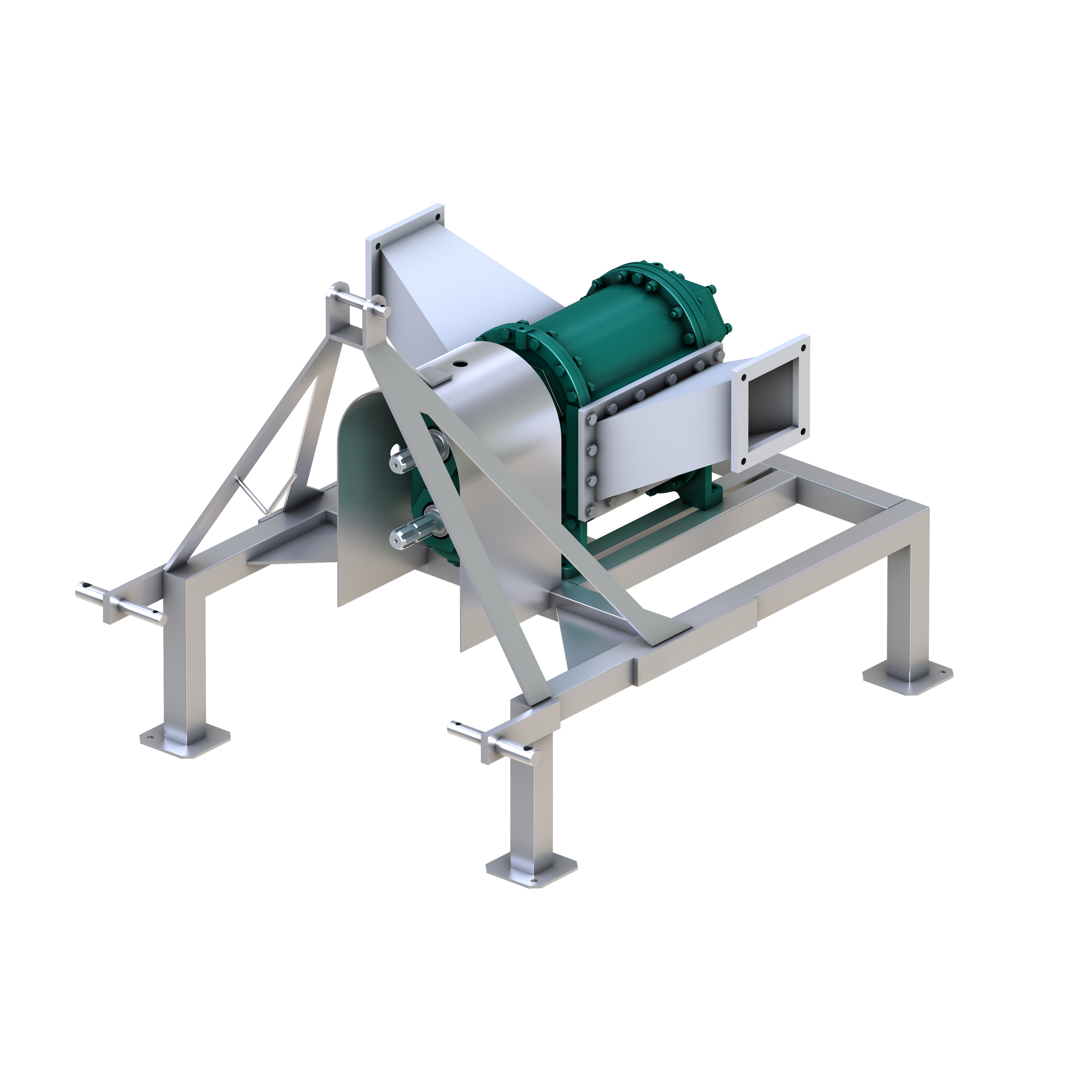

Our Rotary Lobe Pump at a glance

Standard equipment rotary piston pump range D70:

(Pressure range up to 5 bar)

  • Piston quality SBR (on request - NBR)
  • Frontal wear plates Hartox
  • Train design: PTO profile 6 pieces 1 3/8 " DIN 9611
  • Electric motor design Straight shaft with key DIN 6885
  • Greasable shaft seal



  • Perfect for nearly every pipe-system
  • Pumping liquid cow manure
  • Pumping liquid pig manure
  • Pumping biomass for biogas plants





  • Modular design for quick piston change in just a few steps
  • long-term durabililty
  • Extremely durable
  • Nearly no downtime
  • Bearings on both sides for more stability

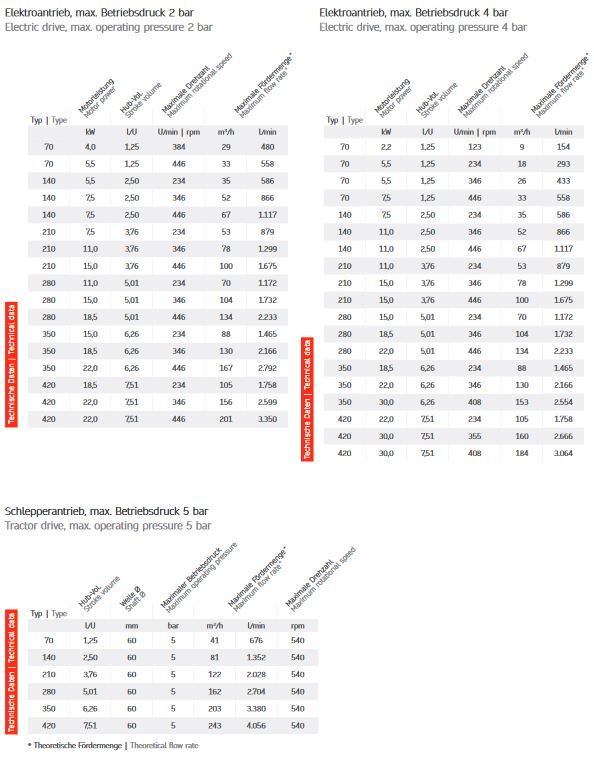

The flow rate (volume flow rate in m3) is dependent on the density and viscosity of the liquid, the type and the DM content of the manure (animal feed), the support height and distance and the diameter of the pipeline.
