Our Submersible Motor High Pressure Pump at a glance



  • Electric motor 11,0 – 22,0 kW
  • Three-phase-motor 400 V, 50Hz, 1450 rpm.
  • IP68 protection category, insulating category F = 155° C
  • Thermo-control for each phase as overheating protection
  • Motor housing in 1.4301 stainless steel
  • Pump housing made from cast iron material coated with 2-component plastic lacquer
  • Large capacity pump housing and therefore resistant to blockages
  • Pump impeller with top intake auger and chopping mechanism
  • Impeller and feeder ring plated with WIDIA sintered carbide
  • Sealed with radial shaft seal rings on special acidresistant hardened rings
  • Electric cable with water-blocking devices in the longitudinal direction of the cable for moisture protection; special PU outer sheathing with moulded connection
  • 1.4301 stainless steel slide bearing and absorb flange
  • Electric switch as a manual star-delta or automatic star-delta starter with motor protection switch and CEE plug

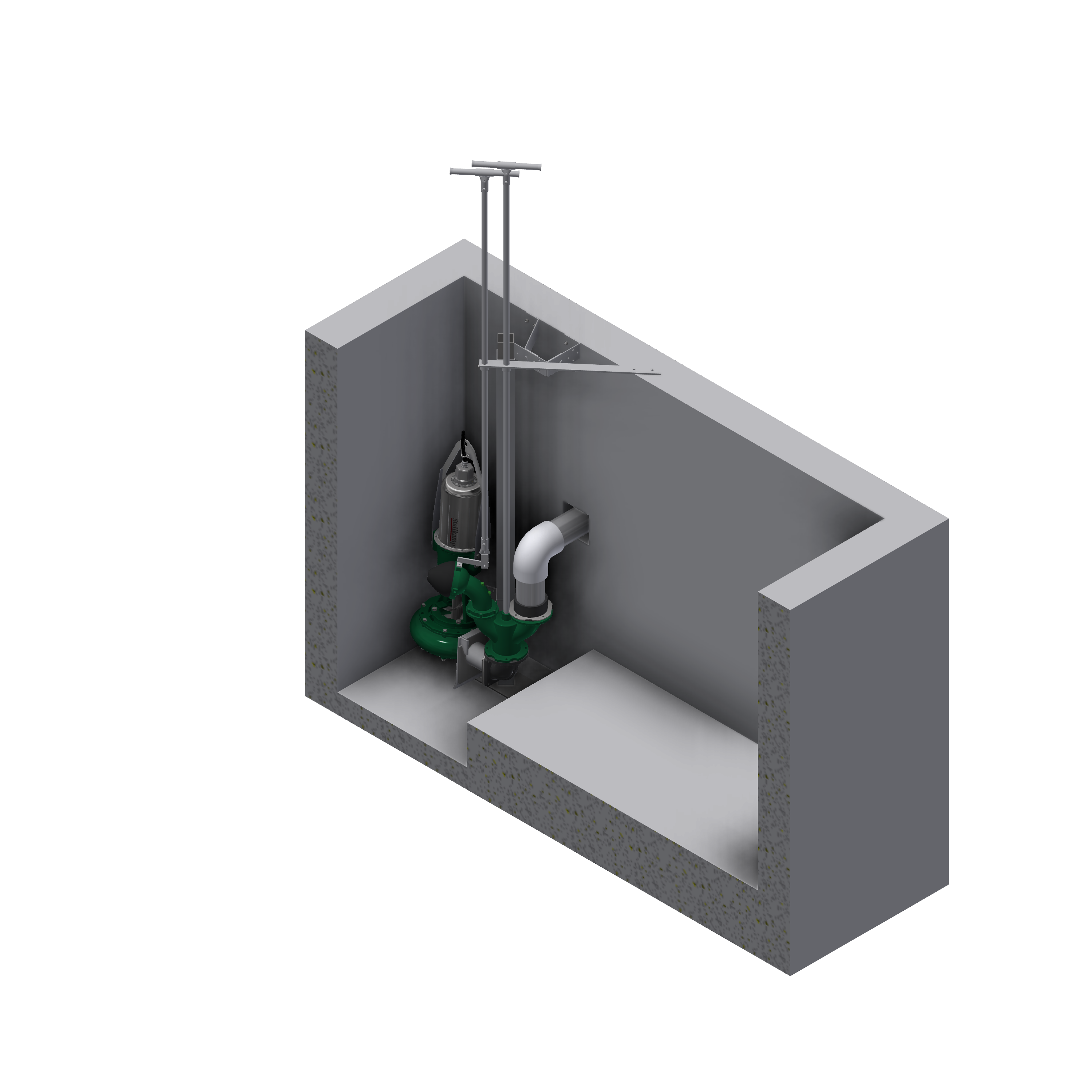

  • Pumping manure in repositories, slurry pits and slurry canals
  • Pumping biomass for biogas systems
  • Pumping sewage sludge in wastewater treatment plants
  • Pumping industrial wastewater in industrial systems





  • High delivery pressures
  • No gas build-up in pump housing
  • Top performance under the toughest conditions (can be used in manure and biogas plants)
  • Spiral shaped shearing edge and large volume housing to prevent blockages
  • Thermo-control is installed as standard to prevent damage from overheating
  • Pumping medium temperature up to 50° C
  • The smooth design prevents the accumulation of fibrous materials
  • Space-saving design
  • A wide range of accessories



The flow rate (volume flow rate in m3) is dependent on the density and viscosity of the liquid, the type and the DM content of the manure (animal feed), the support height and distance and the diameter of the pipeline.
