Our PSS 4/5.5-500 at a glance

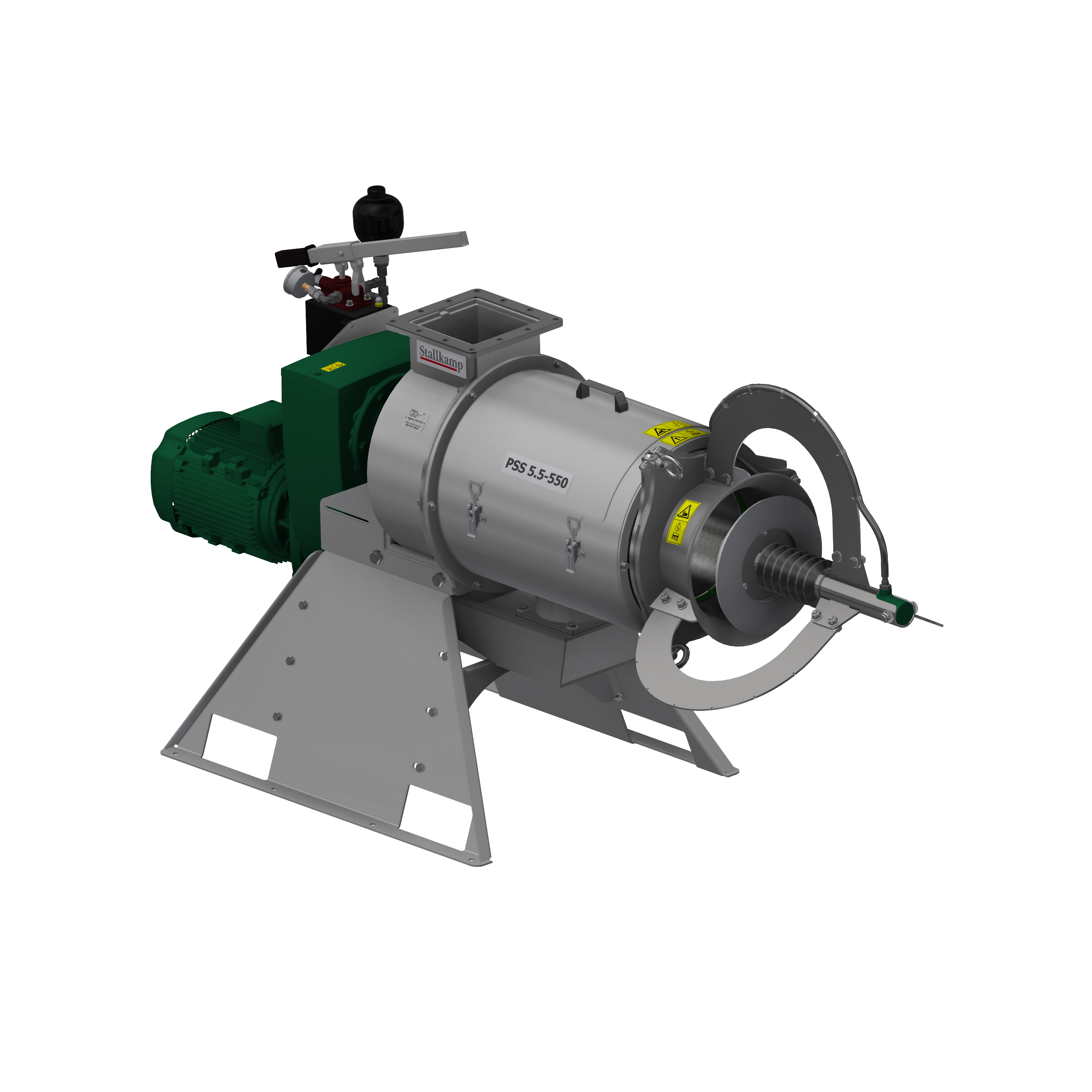

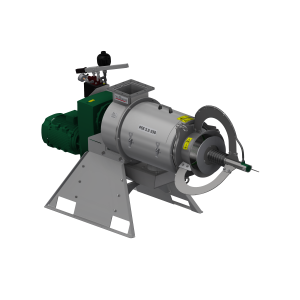

Press screw separator PSS 4-550-M1301 consisting of:

  • Stainless steel separator
  • Press screw right-and double-standard stainless steel with tungsten carbide plated
  • Stainless steel screen basket with defined gap
  • Drive motor 400/690V, 50 Hz, 4,0 kW, 28 rpm.
  • Temperature of the separated medium up to a max. of 50 °c

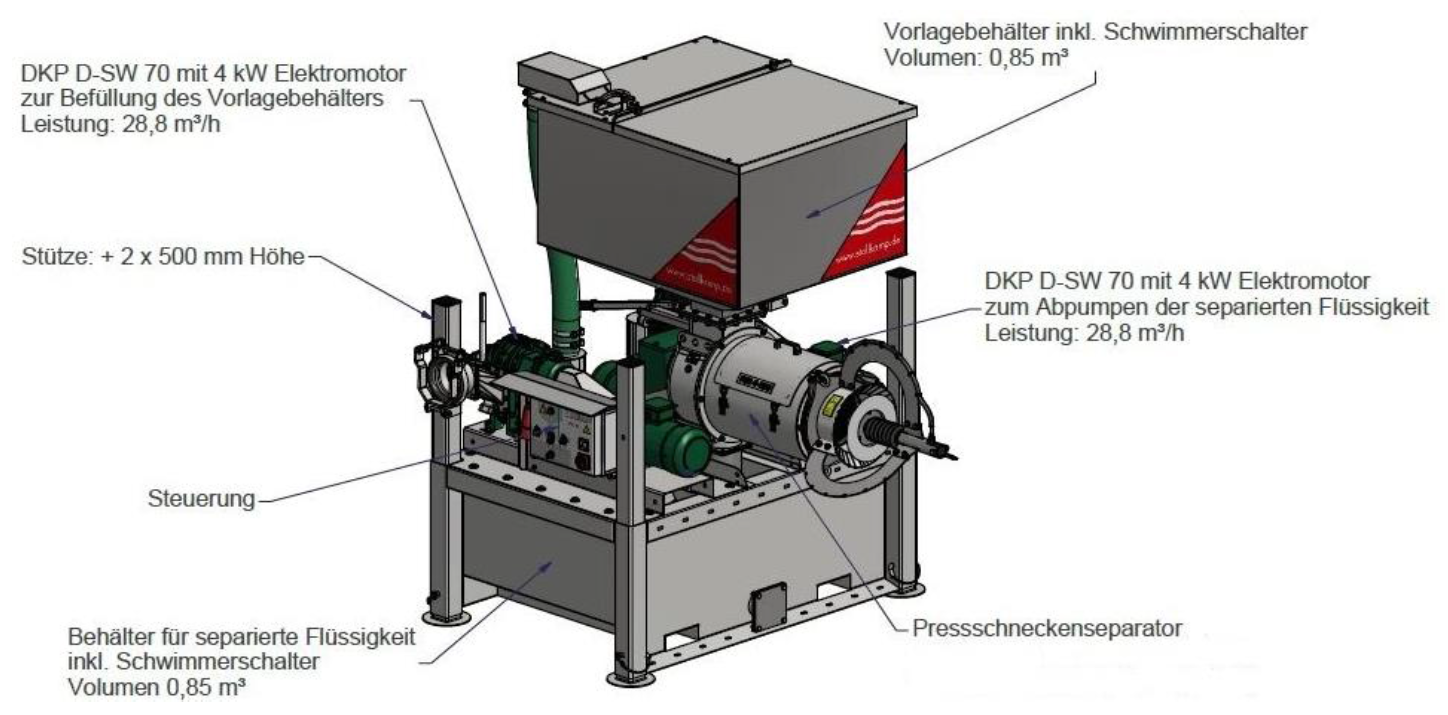

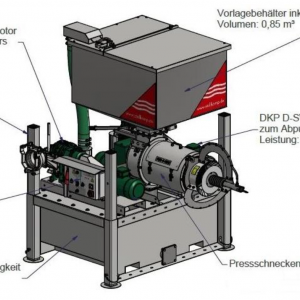

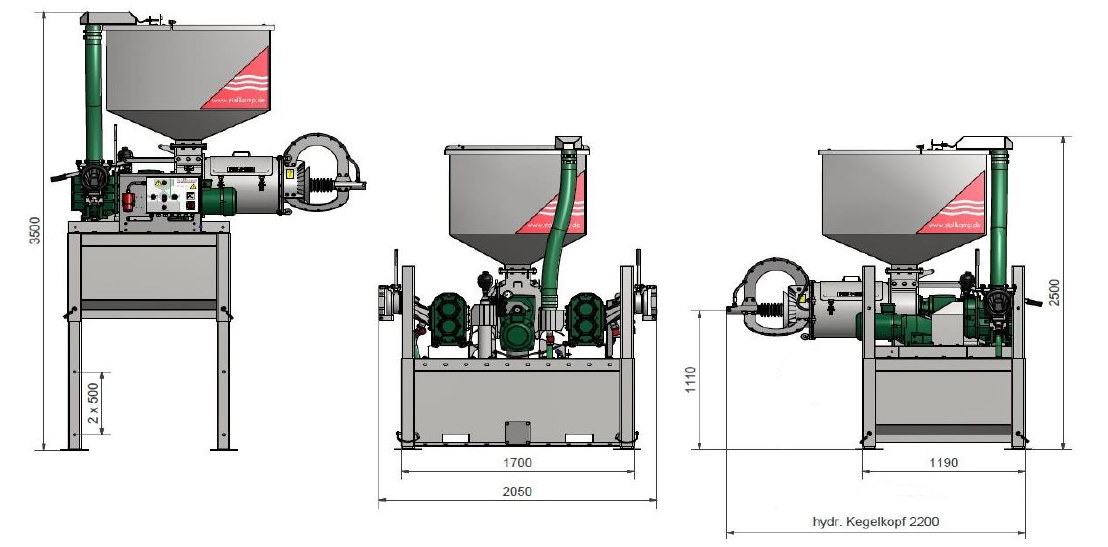

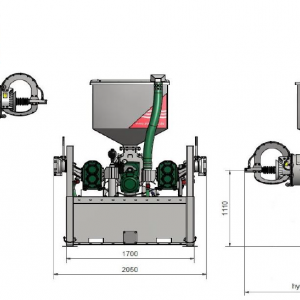

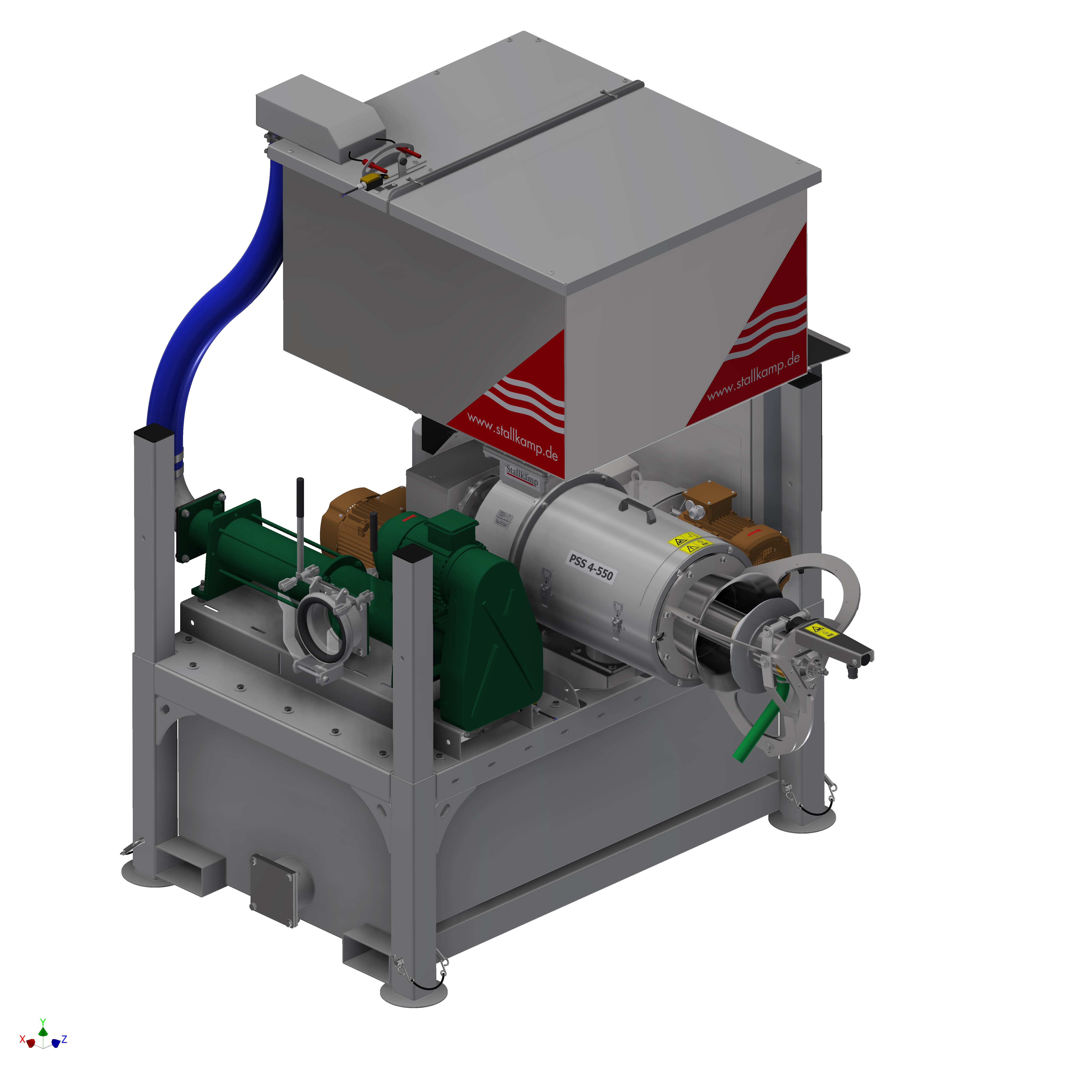

The mobile unit large consists of:

  • basic machine PSS 4-550 or PSS 5,5-550
  • 2 rotary lobe pumps D-SW-70 E with 4 kW drive motor

          (384 rpm; max. 28,8 m³/h.) feed - and exhaust pump

  • receiver tank 0,85 m³ with level indicator
  • hopper 0,85 m³ with level indicator
  • control cabinet for controlling the separator and the both rotary lobe pumps

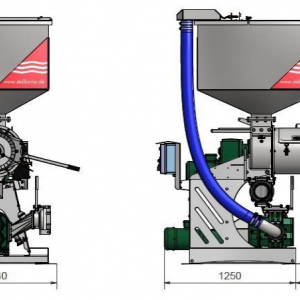

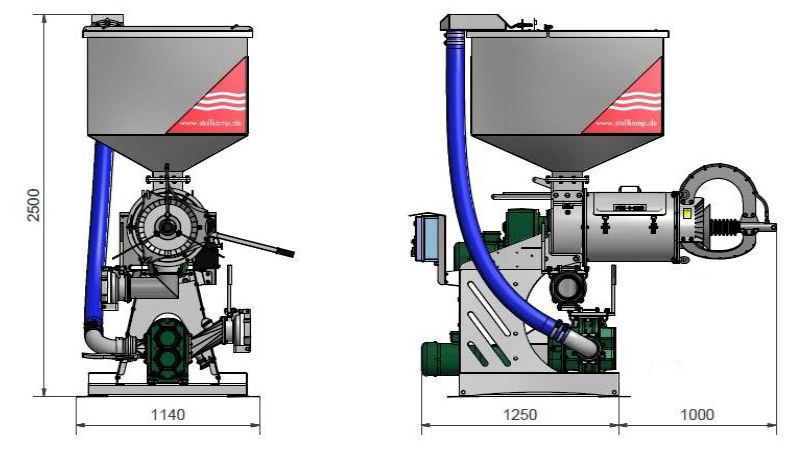

The mobile unit small consists of:

  • basic machine PSS 4-550 or PSS 5,5-550
  • rotary lobe pump D-SW-70 E with 4 kW drive motor

          (384 rpm; 28,8 m³/h.) feed - and exhaust pump

  • hopper 0,85 m³ with level indicator
  • control cabinet for controlling the separator and the both rotary lobe pumps

Agriculture

  • For the easy distribution of cattle and pig manure or for the production of bedding material

Biogas plants

  • Separating solid and liquid matter before and after the digester process

Industry

  • Food industry: Separating vegetable waste, for example potato peelings
  • Slaughterhouses: Separation of rumen contents
  • Distilleries: Separation of the mash



  • Increases dry matter
  • Accelerates cleaning/service work
  • Quicker operational readiness since the plug does not have to be established from foreign material
  • Due to the even force distribution of the ball head on the fixed material, reliable separator operation occurs
  • Required degree of dry matter during running operations effortlessly modifiable and, thanks to the manometer display, effortlessly reproducible





  • Separator PSS 4-550-M-1301 with hydraulic cylinder head
  • Motor 4 kW, 28 U/min
  • Manual hydraulic pump with diaphragm accumulator and manometer for cylinder head
  • Inlet
  • Hydraulic dylinder head pivoted for maintenance
  • Stainless steel sieve basket, optional reinforced
  • Armored auger
  • Discontinued 3” internal thread
