Our Submersible Motor Agitator with Circulation-Frame TMR-Z at a glance

  • Electric-motor 7,5–22,0 kW
  • Three phase motors 400 V, 50 Hz, 1,450 rpm
  • IP68 protection category, insulating category F = 155 °C
  • Thermo-control for each phase as overheating protection
  • Motor housing in V2A - 1.4301 stainless steel
  • Pump housing and motor cover made from cast iron material coated with 2-component plastic lacquer
  • Propeller speed: 273 rpm
  • Sealing: highly wear-resistant slide ring seal as standard
  • Electric cable with moulded connection with water-blocking devices along the cable for moisture protection; special PU outer sheathing
  • Circulation frame in V2A - 1.4301 stainless steel
  • Electric switch: Manual star-delta or automatic star-delta starter with motor protection switch and CEE plug
  • suited to agitating ring or circulation systems underneath the animal stable

Grubendecke Einbaudarstellung

  • Stationary installation
  • No motor visible outside the animal shed
  • Can be used with U or Z-profi le
  • Optionally also for systems with sliding rails
  • Bulkhead plates made from 1.4301 stainless steel
  • Optimum agitation characteristics by forcing the medium through the agitator
  • A reception pit is no longer necessary
  • Optionally with reverse switch

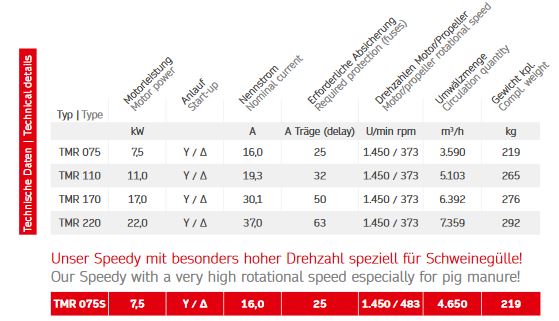

Typ Motor Power Start up Nominal Current Required Protection Number of Revolutions
Motor/Blades
Circulation Rate Weight
  kW   A A delay rpm m³/h kg
TMRS 075
7,5
y/Δ
16,0
25
1450 / 483
4650
219
TMR 075 7,5 y/Δ 16,0 25 1450 / 373 3590 219
TMR 110 11,0 y/Δ 19,3 32 1450 / 373 5103 265
TMR 170 17,0 y/Δ 30,1 50 1450 / 373 6392 276
TMR 220 22,0 y/Δ 37,0 63 1450 / 373 7359 292
TMRS 075 - Our Speedy with a very high rotational speed especially for pig manure!

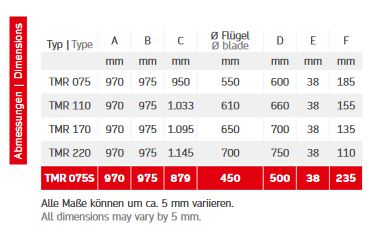

Type A
Width
B
Hight
C
Length
Ø
Blades
D
Nozzle Ø
E
Thickness
F Nozzle
Distance to Frame
  mm mm mm mm mm mm mm
TMRS 075
970 975 879 450 500 38 235
TMR 075 970 975 950 550 600 38 185
TMR 110 970 975 1.033 610 660 38 155
TMR 170 970 975 1.095 650 700 38 135
TMR 220 970 975 1.195 700 750 38 110
