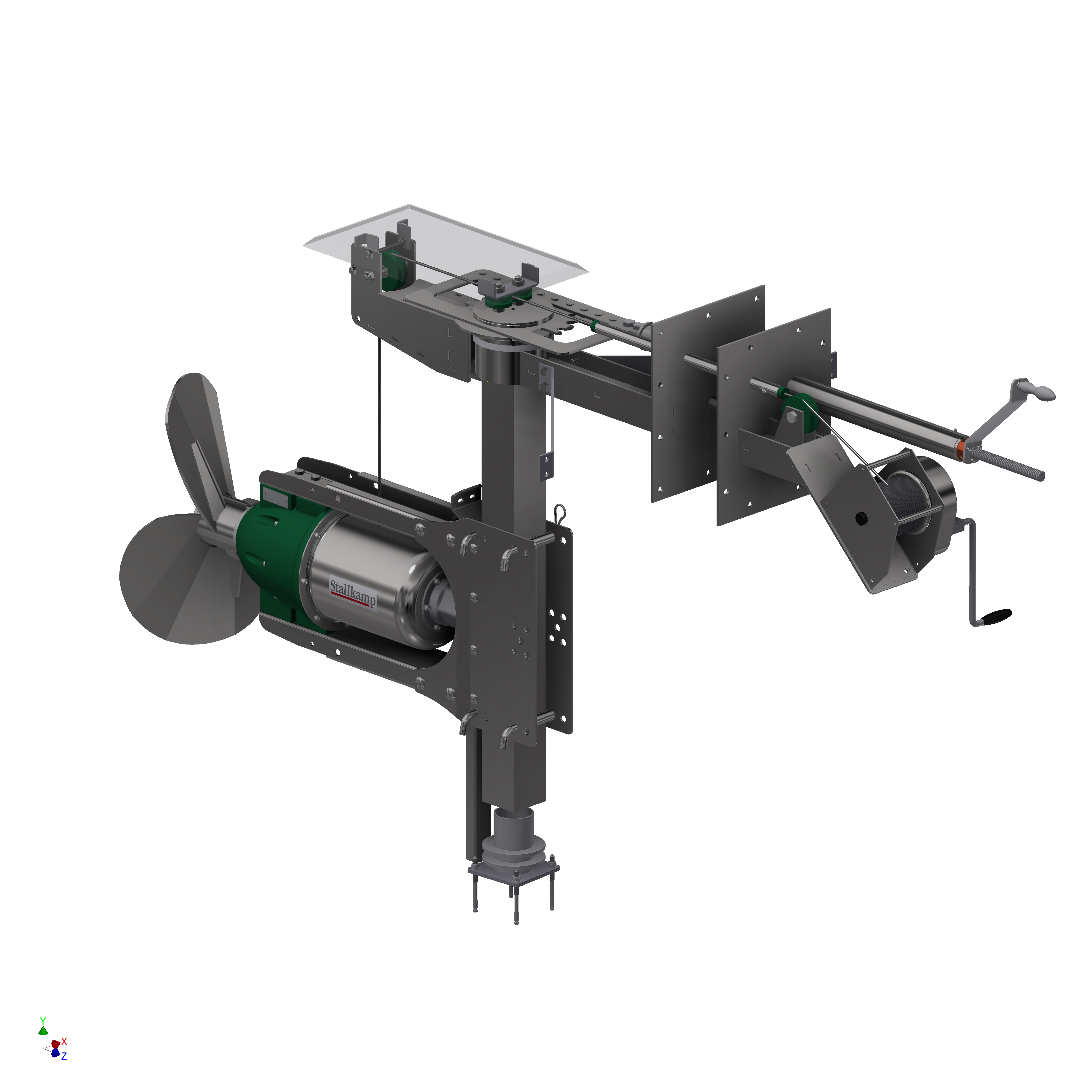

Our Submersible Motor Agitator TMR 3 at a glance



  • Three phase motor 400 V, 50 Hz, 1,450 rpm, electric motor with oil filling
  • Insulating category F = 155 °C, protection category IP68
  • Thermo-control for each phase as overheating protection
  • Motor housing in stainless steel
  • Gearbox housing and motor cover made of cast iron coated with 2-component plastic paint
  • Planetary gear
  • Propeller rotational speed 373 rpm
  • As standard highly wear-resistant slide ring sealing
  • Electric cable: 10 m with cast screw connection and 10 stainless steel cable clamps with rubber inserts and stainless steel shackles
  • Special electric cable with source-bodies as protection against humidity along the length of the cable, with interior FEP sheath and exterior polyurethane sheath
  • Stainless steel sliding guide with depth stop for guide rail 100 x 100 mm
  • Submersion depth max. 10 m (other depths on request)





  • The agitator has been designed with a wide variety of fields of application in mind in which a high flow rate is required proportional to the power consumption.
  • The agitator is intended for the following applications:
    Agitation and/or homogenisation of manure in final storage sites, reception pits, manure channels and bio-mass in biogas plants. Agitation and/or homogenisation of industrial sewage in industrial systems is also possible.
  • The agitation eff ect is fundamentally dependent on the density and viscosity of the liquid as well as on the contents of the tank and its shape. For larger tanks, more than one agitator may prove necessary.





  • Individually adjustable submersion depth
  • Liquid jet and direction of fl ow can be adjusted as required
  • High-powered agitation
  • Eco-friendly and economical operation
  • Optimum media homogenisation
  • Excellent value for money
  • High quality from our in-house manufacturing
  • A wide range of accessories
